source:Songjiang Group    date:2019-6-11

Shanghai Songjiang Damper Group Nantong Co., Ltd. will introduce to you: Technical support for installation instructions of ZTA Damping Spring Damper. The drawings are provided by the Technical Department of Songjiang Group. If you need to reproduce, please indicate the source: Nantong website of Songjiang Group www.songjiangjituan.net.

Before installation, please make sure that the model and specifications of the rubber spring shock absorber of Songjiang Group are correct. Installation instructions; Tools required: M10, M12, M14, M16, M20 open wrench.

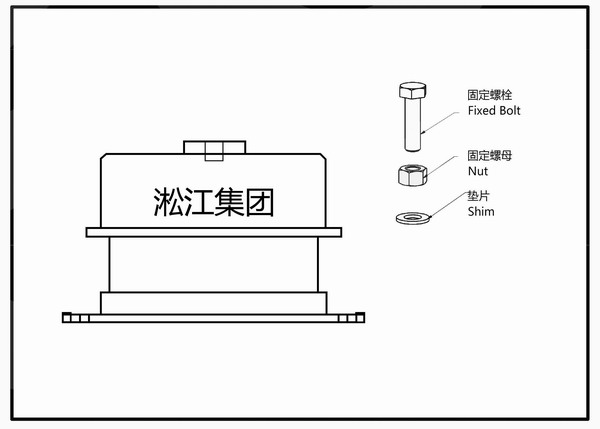

Check whether the accessories are complete and whether the spring shock absorber is defective or damaged. (Figure 1)

Technical Support for Installation of ZTA Damping Spring Damper

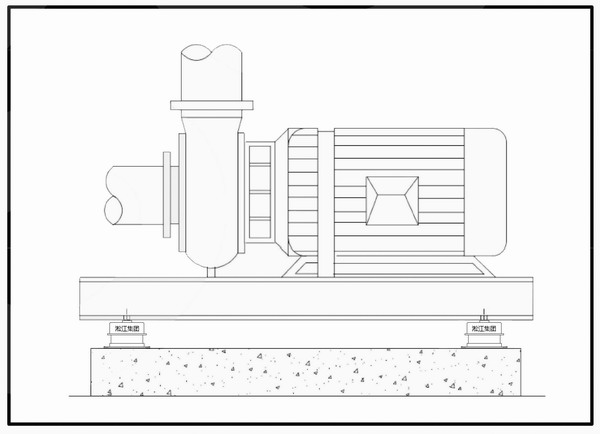

Place the spring damper in the installation position of the equipment. (Fig. 2)

Technical Support for Installation of ZTA Damping Spring Damper

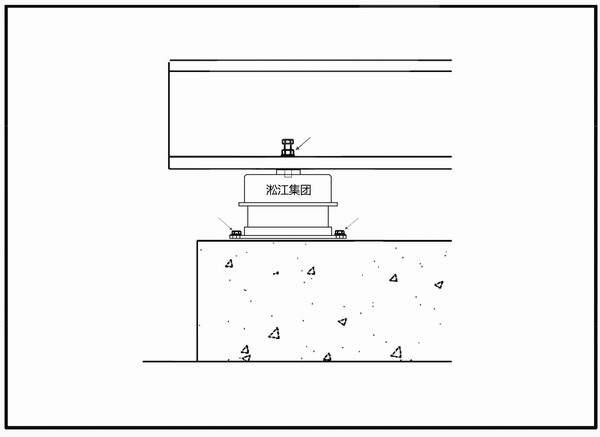

Lock nuts and gaskets to ensure that equipment and spring dampers are in place. (Fig. 3)

Technical Support for Installation of ZTA Damping Spring Damper

After installation, please check the spring pressure. If the spring is pressed to the bottom, it means that the load is insufficient and there is no shock absorption effect. The spring shock absorber model with larger load should be replaced, and please contact our company's business personnel. Please pay attention to safety during installation
