source:Songjiang Group    date:2019-6-11

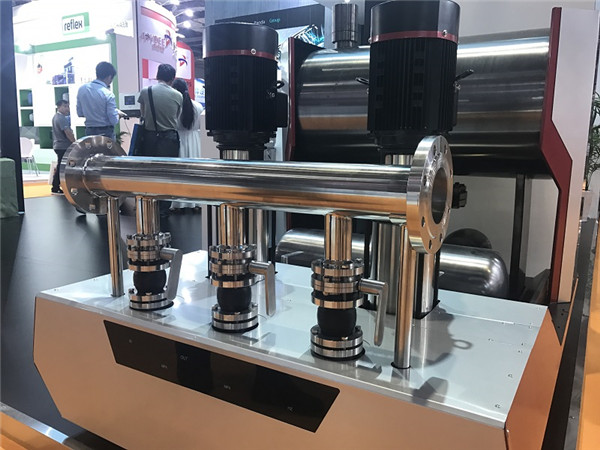

Shanghai Songjiang Shock Absorber Group Nantong Co., Ltd. will introduce to you: Is it possible to install rubber soft joint of non-negative pressure water supply system in this way? For more netizens, the technical department of Songjiang Group will share and analyze the common problems of various rubber soft joints and help more customers to solve and understand more problems of rubber soft joints. The following is the installation site introduction of rubber soft joints in non-negative pressure water supply system.

Is it possible to install the rubber soft joint of the non-negative pressure water supply system in this way?

Is it possible to install the rubber soft joint of the non-negative pressure water supply system in this way?

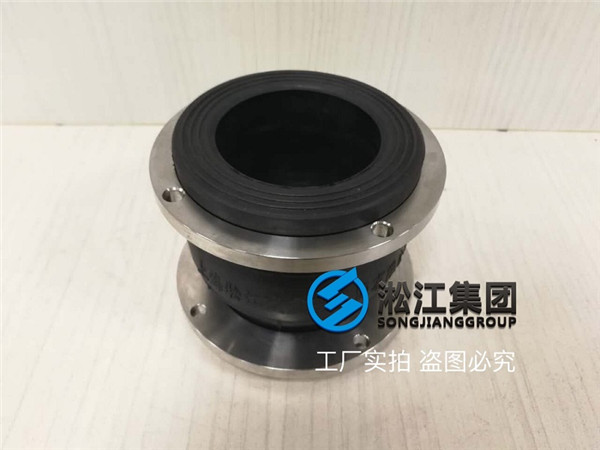

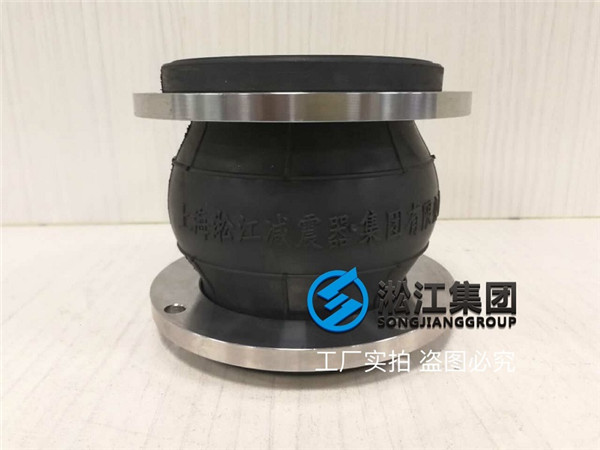

Rubber soft joint is soft sealing butterfly valve at one end and hard sealing butterfly check valve at the other. At this time, the sealing surface of clamp soft sealing butterfly valve and clamp check valve is small, and the sealing surface of rubber soft joint is large. If the bolt is locked tightly, the sealing surface of rubber soft joint will be broken, resulting in water leakage. Now many large non-negative pressure water suppliers have changed to special rubber soft joint. Joint, what is a professional rubber soft joint, as follows:
